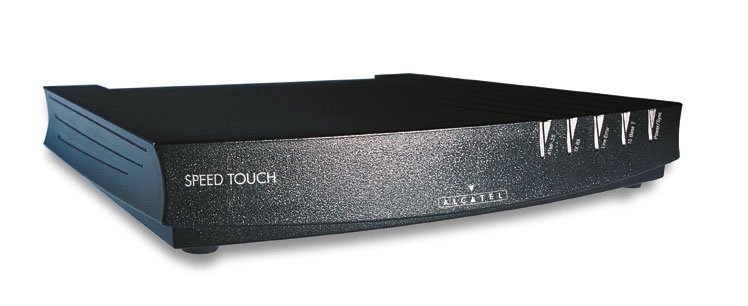

Using the Alcatel SpeedTouch Home Ethernet
When sold under the model name of Home, this ADSL Ethernet device is set
to be used as a modem, ie. you need to connect it to a computer. But a simple
software operation can make it into the Pro version, turning it into a full-fledged
router, including NAT, PAT (port forwarding, ie. letting you run a server on
a computer in your LAN, and make it reachable from the Net), DHCP, and DNS.
Upgrading to SpeedTouch Pro
- From a host connected to the Net, generate the admin password for the
MAC address of your modem by visiting this
- If the Alcatel modem is currently connected to the ADSL line, disconnect
- Connect a regular RJ45 network cable from a computer to the modem (no
- Set the computer's IP configuration to 10.0.0.1/255.0.0.0, gateway =
10.0.0.138 (which is the modem's IP default address)
- (only needed when upgrading firmware, or commands
different?) Since the ST comes in two flavors (G and K), launch a web browser to
http://10.0.0.138/cgi/upgrade, and check whether the firmware version starts
with GV (G series) or KHD (K series). If you are unable to connect to the
modem on-board web server, the firmware version may be printed on the back
of the modem
- Use your favorite telnet application to connect to the modem (telnet
- Hit ENTER for the username (it'll use the modem's MAC addresse)
- Since this is a brand new modem, there is no user password yet. You are
now logged on as a regular user. To upgrade the STHome to Pro, you need to
log on as admin.
- Enter "td prompt" without the quotes (alternatively, type
"EXPERT" on older models)
- Enter the admin password that you generated above. You are now in admin
- Enter "rip"
- Enter "drv_read 2 1 b" (yes, there are spaces between 2, 1,
and b). Note the value that is returned by the modem, usually 8704, 8604,
or even 9604. We want to change digit from 4 to 6
- Depending on which number was returned, enter either "drv_write
2 1 b 8706", "drw_write 2 1 b 8606", or "drw_write 2
1 b 9606"
- Enter "exit", followed by "system", and "reboot".
The modem will reboot. Connect the modem to the ADSL line (without forgetting
At this point, depending on your ISP, you either need to set up a PPP connection,
or generate and FTP a user.ini file into the modem's /dl directory.
Upgrading the firmware
Generating a user.ini
Setting a password
If you don't want the modem to be hacked from the Net, it is recommended
to set a password. Aim your browser to http://10.0.0.138/cgi/system/
Before we go on configuring the firewall part of the modem, do remember that
firewalling only tells the modem whether to allow or deny the flow of packets
through the modem. If you want to share the Internet connection and host a server
on your LAN such as a web or FTP server, this is handled by the NAT (Network
Address Translation) part, which is handled before any firewalling is done in
the Input chain.
Also, always remember to activate the firewalling in the IP configuration;
Otherwise, you can create all the rules you want: As long as firewalling=off,
the modem won't block a thing :-) To check whether firewalling is on or off, telnet to the modem, and enter
"ip config". To toggle its status, enter
"config firewalling=on" (or =off), followed by "config save"
to make the change permanent.
The firewall part of the modem works like this: At any time, a packet finds
itself in one of those five states, called hooks. To each state/hook, you assign
a chain (ie. group) of rules.
Here are the five different states a packet is while it is handled by the
modem (and here's a diagram):
- input: A packet enters the modem
- sink: The packet is intended for the modem itself
- forward: The packet is intended for a host on the other side
- source: The packet was generated by the modem itself (after being routed
by the sink hook), and is now sent to the outside
- output: The packet is intended for another host on the outside, ie.
went through input and forward states, and is not output
Creating a chain
firewall chain create chain=input
Assigning a chain to a hook
firewall assign hook=input chain=input
Assigning a rule to a chain
firewall rule create chain=sink index=0 prot=udp dstport=dns action=accept
Listing the current hooks
Listing the chains
firewall chain list
Listing current rules
firewall rule list
Deleting a single rule
You can delete a single rule using the "rule delete" command. You
can remove all rules using "firewall flush".
Deleting a chain
firewall chain delete chain=input
Tips when telneting
- :mymenu mycommand means that you wish to send commands to the mycommand
menu, without first moving to this mode via mymenu<ENTER>, followed
by mycommand<ENTER>. For example, when starting from the top level,
you can either type ":config save" or "config<ENTER>save<ENTER>"
- When in a given menu, either hit the TAB key or type help<ENTER>
to get a list of available commands
- Command completion is available by hitting TAB
- To move up one level, type "..<ENTER>"
- The Command Line Interface Reference Guide is here.
Use NAT to allow hosts on the Net to connect to servers located on your internal
network. Here's how to set up NAT to allow hosts on the Net to connect to a
web server (HTTP and HTTPS) and an FTP server located on a host in your private
- nat flush
- nat create protocol=tcp inside_addr=10.0.0.1:80 outside_addr=0.0.0.0:80
- nat create protocol=tcp inside_addr=10.0.0.1:443 outside_addr=0.0.0.0:443
- nat create protocol=tcp inside_addr=10.0.0.1:21 outside_addr=0.0.0.0:21
- config save
Use "nat list" to list currently active NAT connections, including
the static connections you built, which are marked as "template".
a.k.a. Port forwarding. Unlike Windows2000 port forwarding feature, the ST
lets you redirect connections to a port that is different, eg. any connection
made from the Net to TCP 1234 can be forwarded to TCP 5678 on a host on your
Firewall + NAT Sample
Here's a sample that bans any connection to the modem's embedded servers
(telnet, ftp, www), while allowing incoming connections to an FTP and www server
located on a host in your private network:
- firewall rule flush
- firewall flush
- firewall chain create chain=input
- firewall chain create chain=output
- firewall chain create chain=source
- firewall chain create chain=sink
- firewall chain create chain=forward
- firewall assign hook=input chain=input
- firewall assign hook=sink chain=sink
- firewall assign hook=forward chain=forward
- firewall assign hook=source chain=source
- firewall assign hook=output chain=output
- firewall rule create chain=sink srcintfgrp=wan action=drop
- nat flush
- //Required to allow outgoing connectoins to FTP servers in active mode
- nat bind application=FTP port=ftp
- nat create protocol=tcp inside_addr=192.168.0.1:80 outside_addr=0.0.0.0:80
- nat create protocol=tcp inside_addr=192.168.0.1:21 outside_addr=0.0.0.0:21
- ip config firewalling=on
- config save
Adding an IP address to the modem's Ethernet interface
Provided you do not wish to use 10.0.0.0/8 on your LAN, here's how to add
a new address to the modem's default address of 10.0.0.138/8 (it's safer to
add an address instead of replacing the original address):
- Aim at http://10.0.0.138, and log on
with the MAC address and the user password
- Click on Routing
- In "IP address table", click on New, and input a new address
To avoid getting a lowID, you must open up the firewall this way:
- //By default, eMule clients use TCP 4662 and UDP 4672
- nat create protocol=tcp inside_addr=10.0.0.1:4662 outside_addr=0.0.0.0:4662
- nat create protocol=udp inside_addr=10.0.0.1:4672 outside_addr=0.0.0.0:4672
- config save
Since some ISP's block TCP 4662 and UDP 4672 in a foolish attempt to slow
down the use of P2P, you might want to reconfigure your copy of eMule, along
with the firewall rule above to use other ports. You're free to use any port
between 80 and 65535. If you can read French, more info here
on what a LowID is, why you should not want one, and how to change this.
(?) Si vous êtes en Speed Touch + Firewall ou 510v3 il
n'y a pas de configuration de firewall particulière si vous êtes en firewall
niveau 1. http://forpage.com/forum/viewtopic.php?t=624
What's that for? To have the modem add NAT/firewall stuff automagically?
- :nat bind application=H323 port=1720
- :nat bind application=FTP port=ftp
- :nat bind application=RTSP port=554
- :nat bind application=IRC port=6667
- :nat bind application=RAUDIO(PNA) port=7070
srcintf, dstintf, srcintfgrp?
Why isn't this enough to forbid access from the Net to the modem?
firewall rule create chain=sink index=0 srcintf=!eth0 action=drop
firewall rule create chain=SINK index=0 srcintfgrp=wan action=drop
Do I need to upgrade the STH's firmware before turning the modem into an
Not if you are running either GV8BAA3.270 ou GV8BAA3.281.
What is the difference between dstport and dstportend?
It's an awkward syntax to refer to a range of ports, ie. dstport is the beginning
of the range, and dstportend is the end of the range. For instance, here's how
to define the range 8081-65535:
